Since 2003, 3D Modeling Expert Contest is an annual contest for professional users of KOMPAS-3D and its ecosystem applications, including both independent contesters and corporate teams.
Launched as an event for highly skilled KOMPAS-3D users, the contest promotes STEM careers and facilitates the professional development of young engineers. It’s a great opportunity to showcase your KOMPAS-3D skills and receive independent feedback on your project from the software development team.
In 2024, the judges evaluated 131 projects from 75 companies using KOMPAS-3D. Thirty-one of them entered the 3D Modeling Expert Contest for the first time. Take a look at the winning projects of the 22nd 3D Modeling Expert Contest, an annual event for KOMPAS-3D professionals.
MECHANICAL ENGINEERING: 5,000+ COMPONENTS

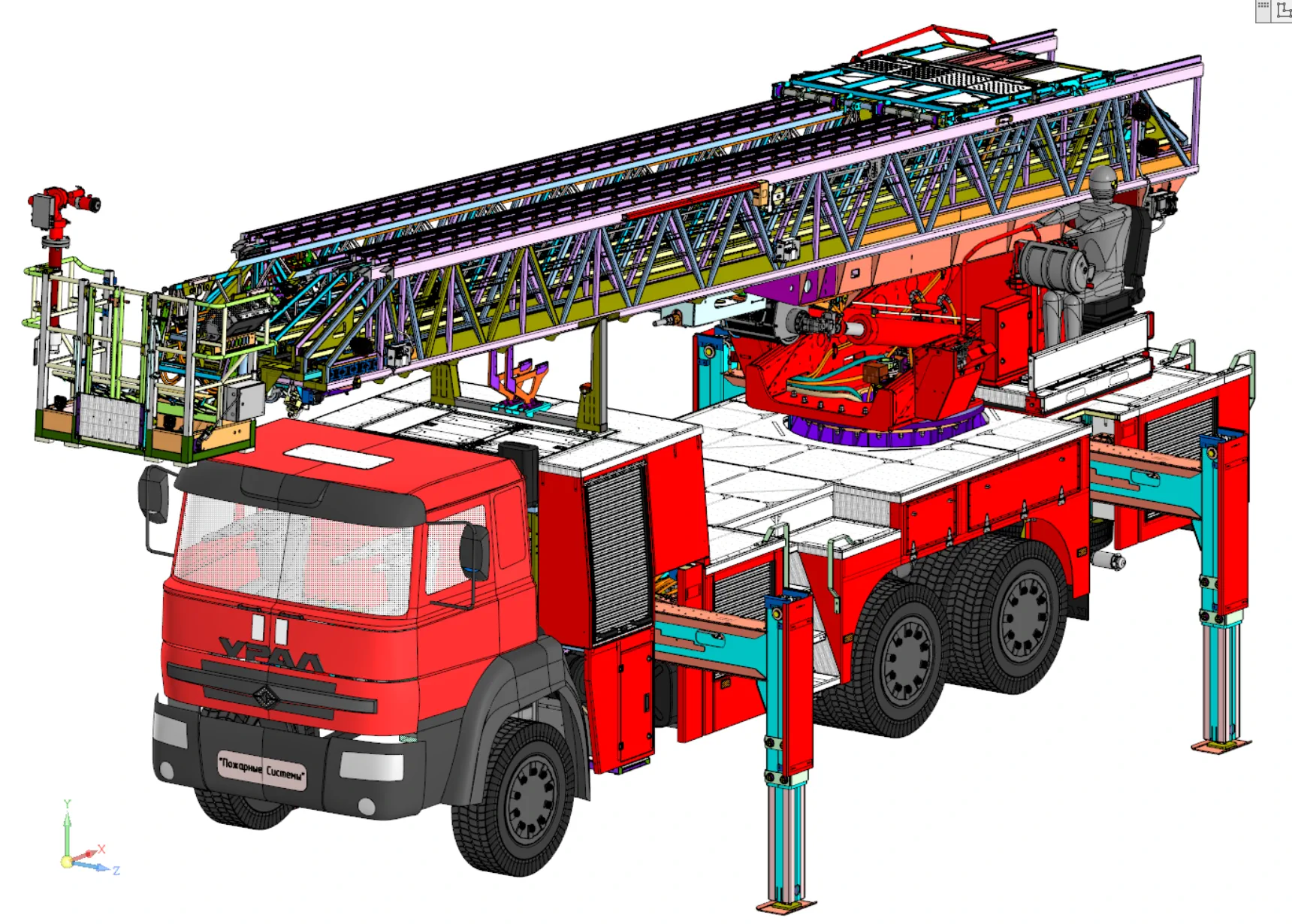

1st place - Extendable ladder aerial fire truck
AL 52 is a fire truck equipped with an extendable ladder. It is designed for evacuating people from heights, extinguishing fires in multi-storey buildings, and conducting rescue operations.
Company Name: Fire Systems

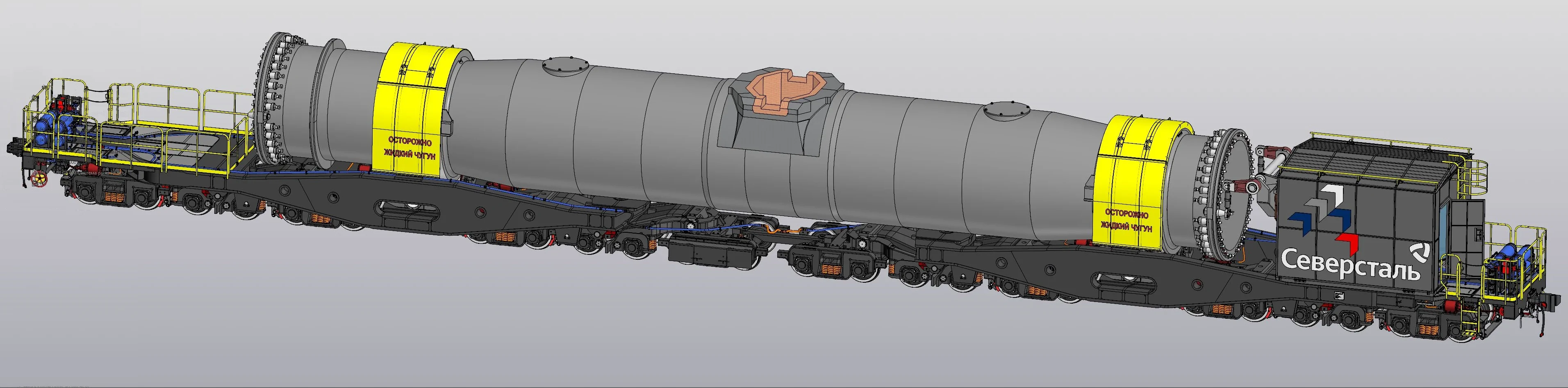

2nd place - 600 t mobile holding furnace for cast iron
The MP-600 mobile holding furnace (with a capacity of 600 tons) transports liquid cast iron from the blast furnace shop to the converters. It travels along the hot metal tracks.
Company Name: Severstal
3rd place - Oil metering and quantity assessment system
The system continuously measures mass flow rate and oil quality.
Company Name: Metrology and Automation
MECHANICAL ENGINEERING: 1,000–4,999 COMPONENTS

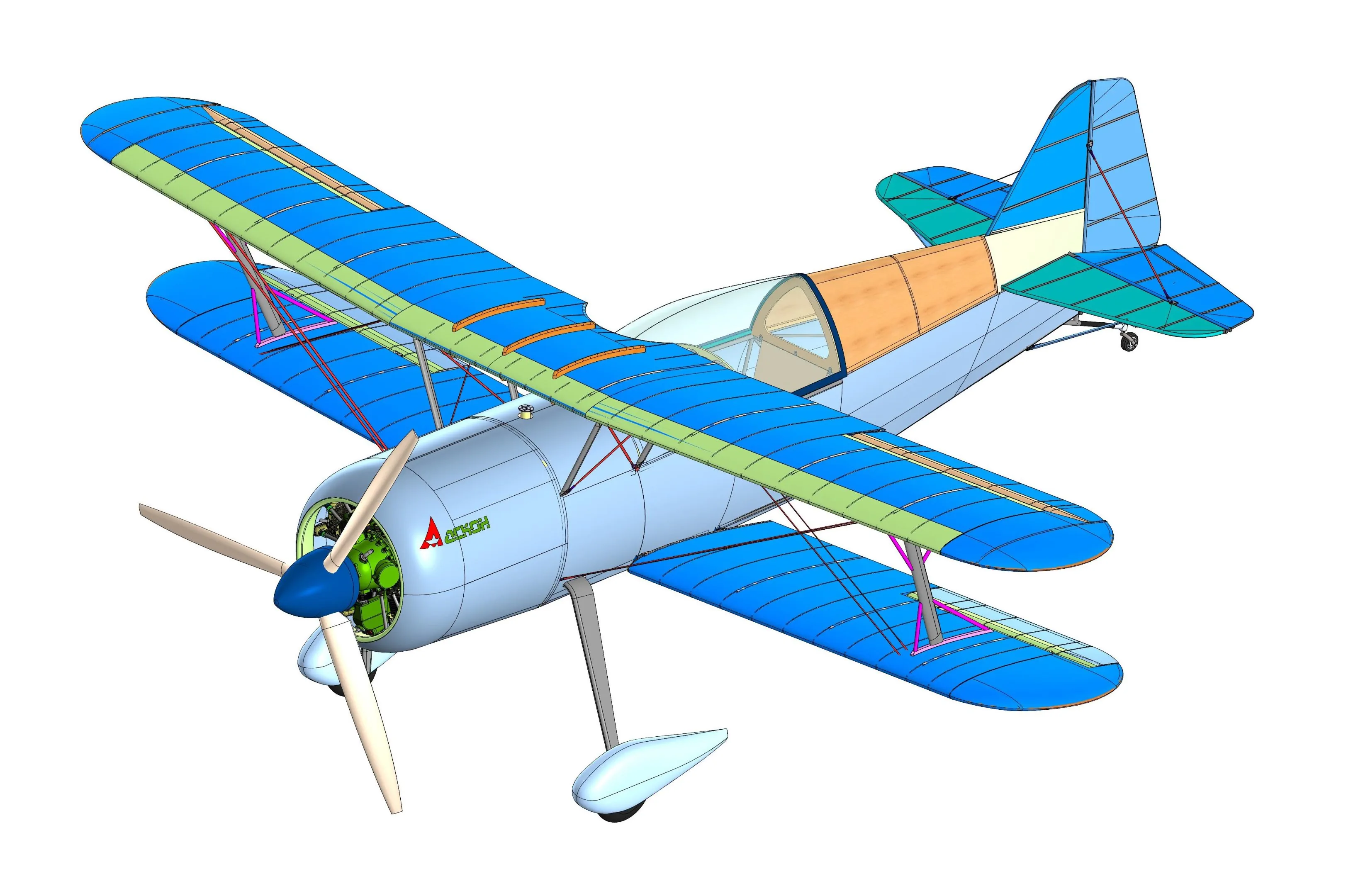

1st place - Tandem aerobatic airplane
A two-seat version of the Pitts aircraft equipped with an M-14P engine.
Company Name: OKB

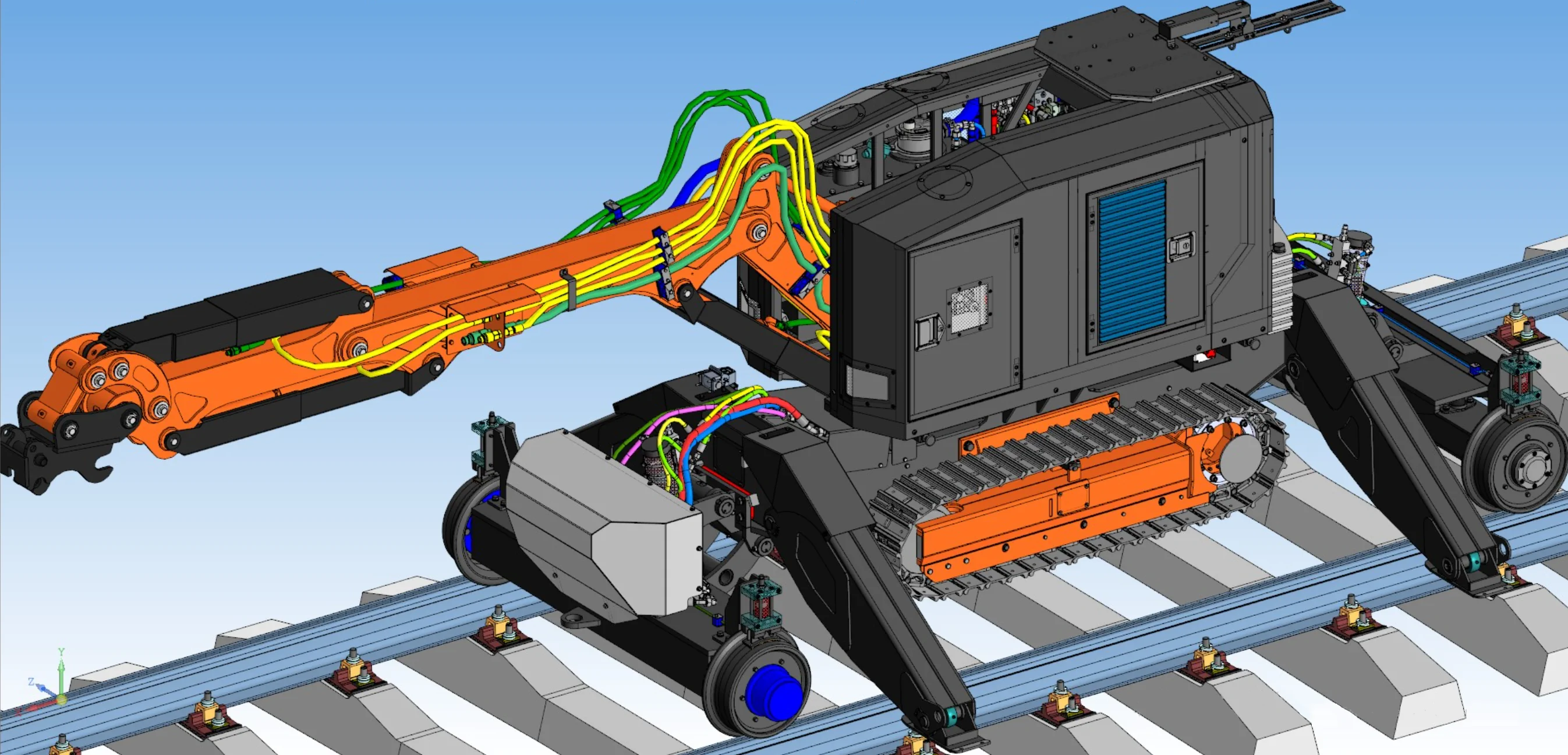

2nd place - P100 all-terrain robotic tracked vehicle with a turret
P100 remotely controlled robotic vehicle is equipped with a 360-degree rotating turret and a tracked all-terrain chassis. Available attachments include a hydraulic hammer, shovel, clamshell bucket, etc.
Company Name: INTECHROS GROUP

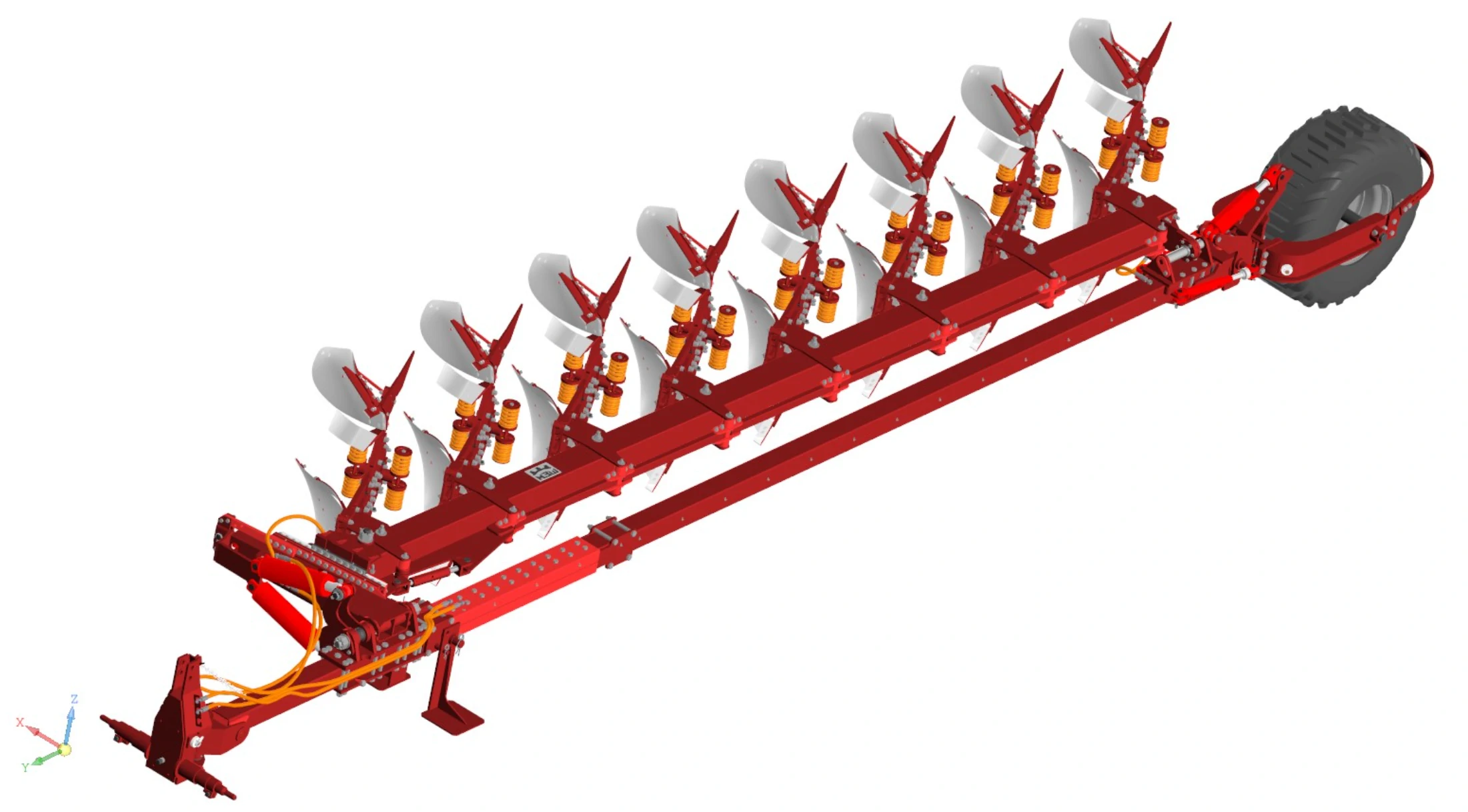

3rd place - PPO-8RK semi-mounted 8-bottom reversible plow for stony soils
PPO-8RK swivel plow is designed for stony soils with penetration resistance up to 0.1 MPa. Plowing depth: 27 cm.
Company Name: Minsk Gear
MECHANICAL ENGINEERING: UP TO 999 COMPONENTS

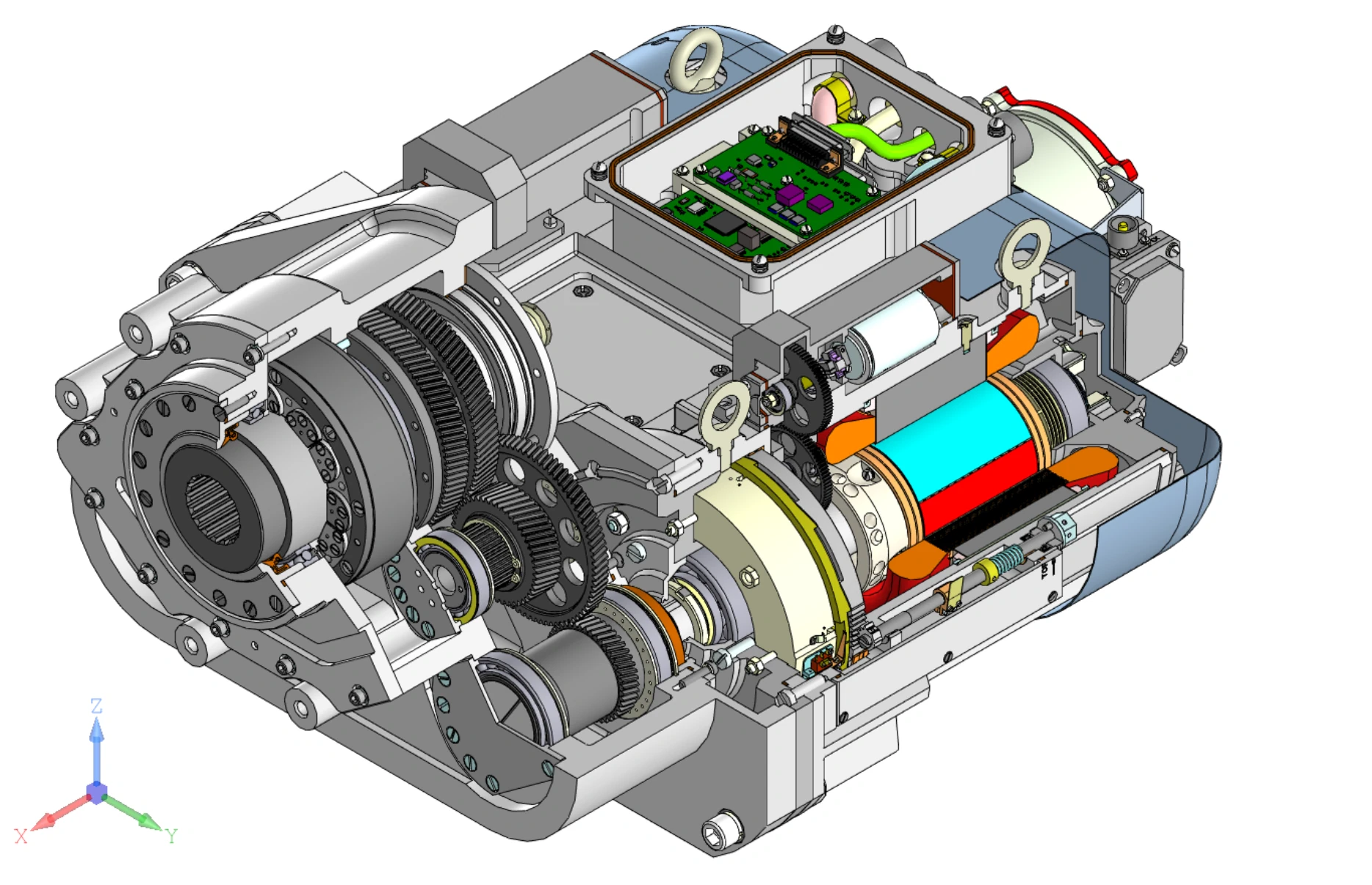

1st place - Differential gear mechatronic module
The mechatronic module is an electromechanical torque device. It consists of a solid housing with two synchronous electric motors and a differential. The module offers high dynamic performance and precision.
Company Name: Signal Research Institute

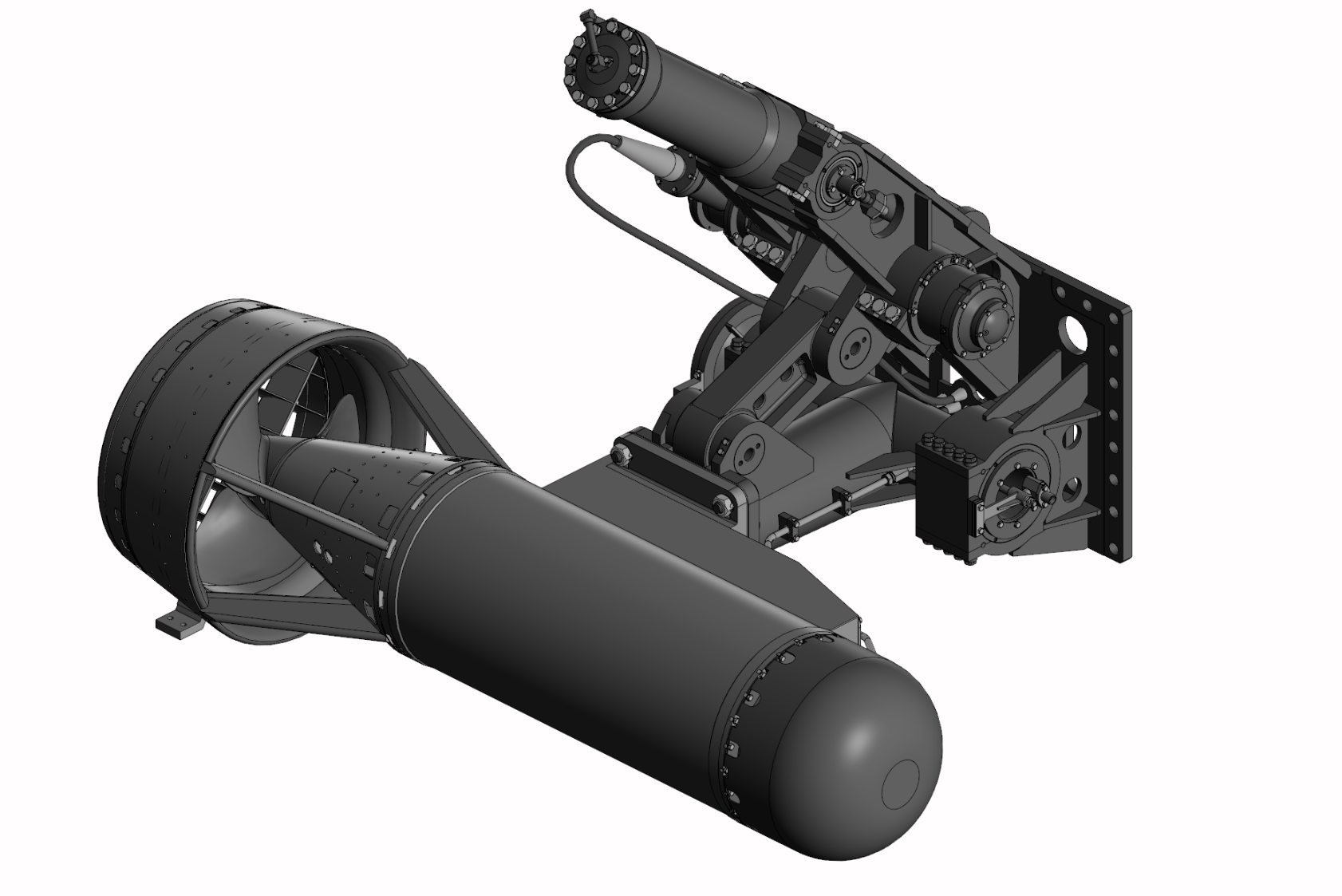

2nd place - A bow thruster
The electric bow thruster is a backup propulsion system for marine vessels. It has a hydraulic deployment system.
Company Name: SEVMASH
INDUSTRIAL CONSTRUCTION

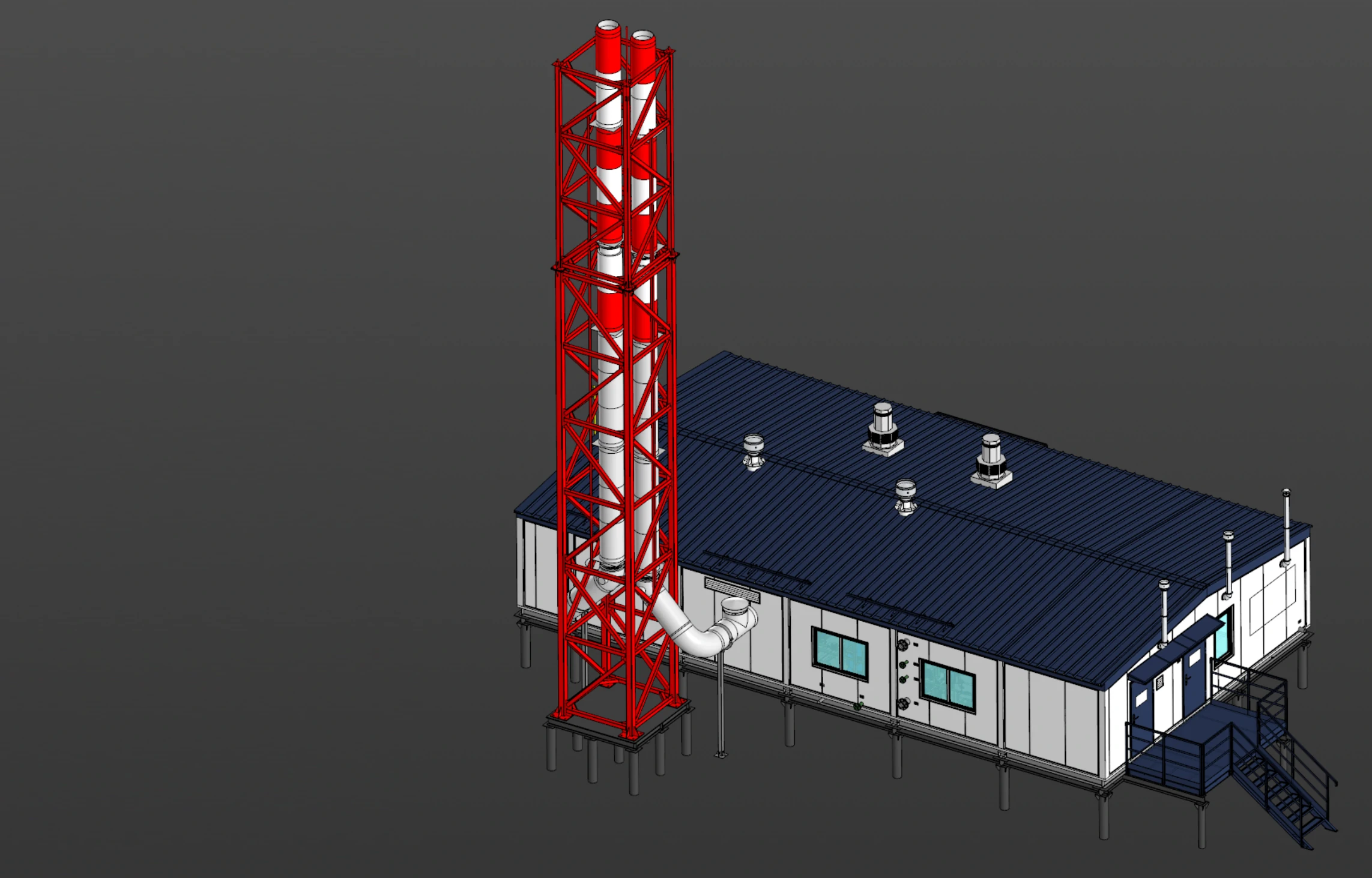

1st place - Modular automated boiler house
The boiler house generates heat for industrial and residential buildings and process plants on site. The main heat source is fuel gas, the backup source is diesel fuel.
Company Name: URALTECHSYSTEMS

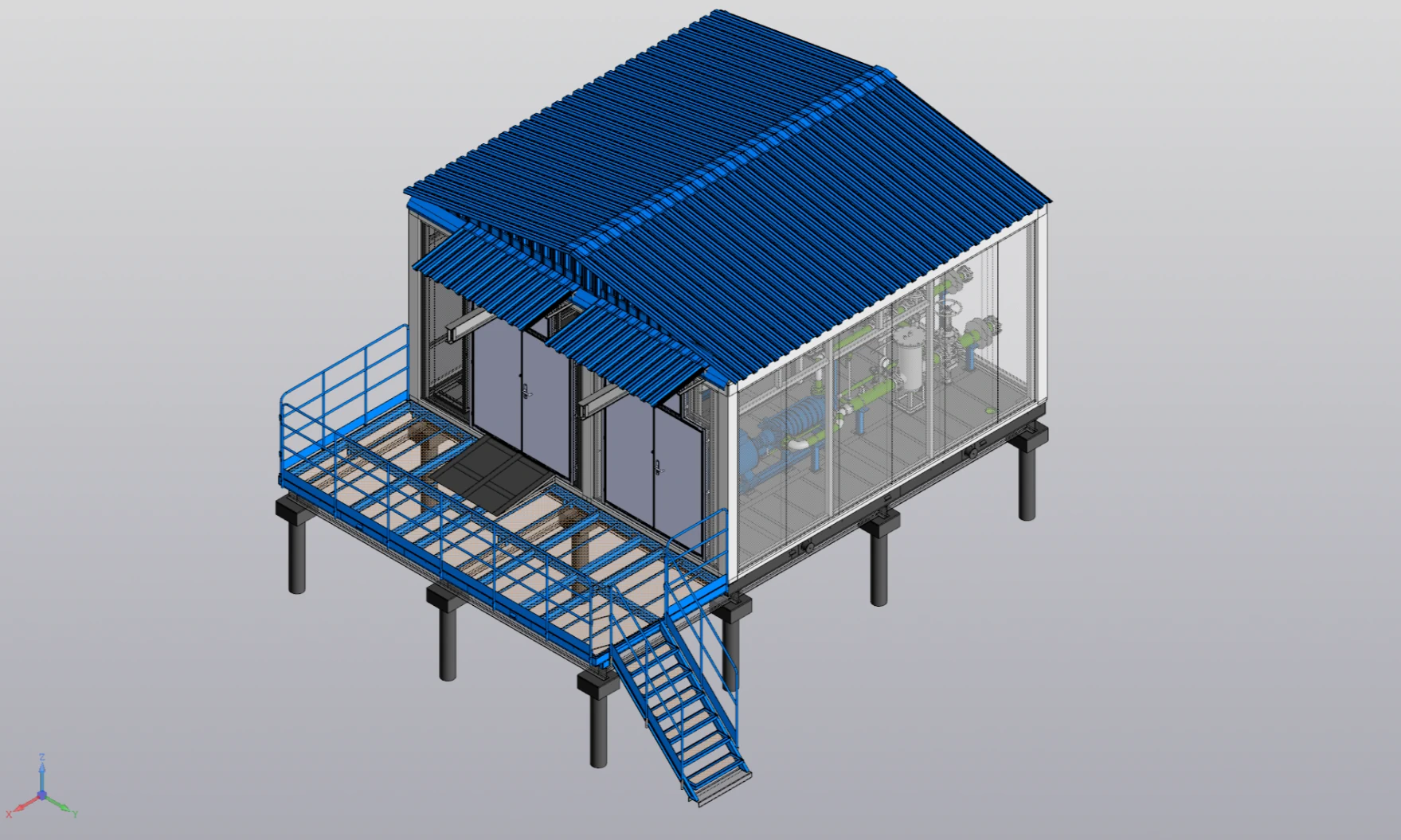

2nd place - Operator building
The building is used by the personnel of the liquefied hydrocarbon gas loading station for tank trucks.
Company Name: EON Energo

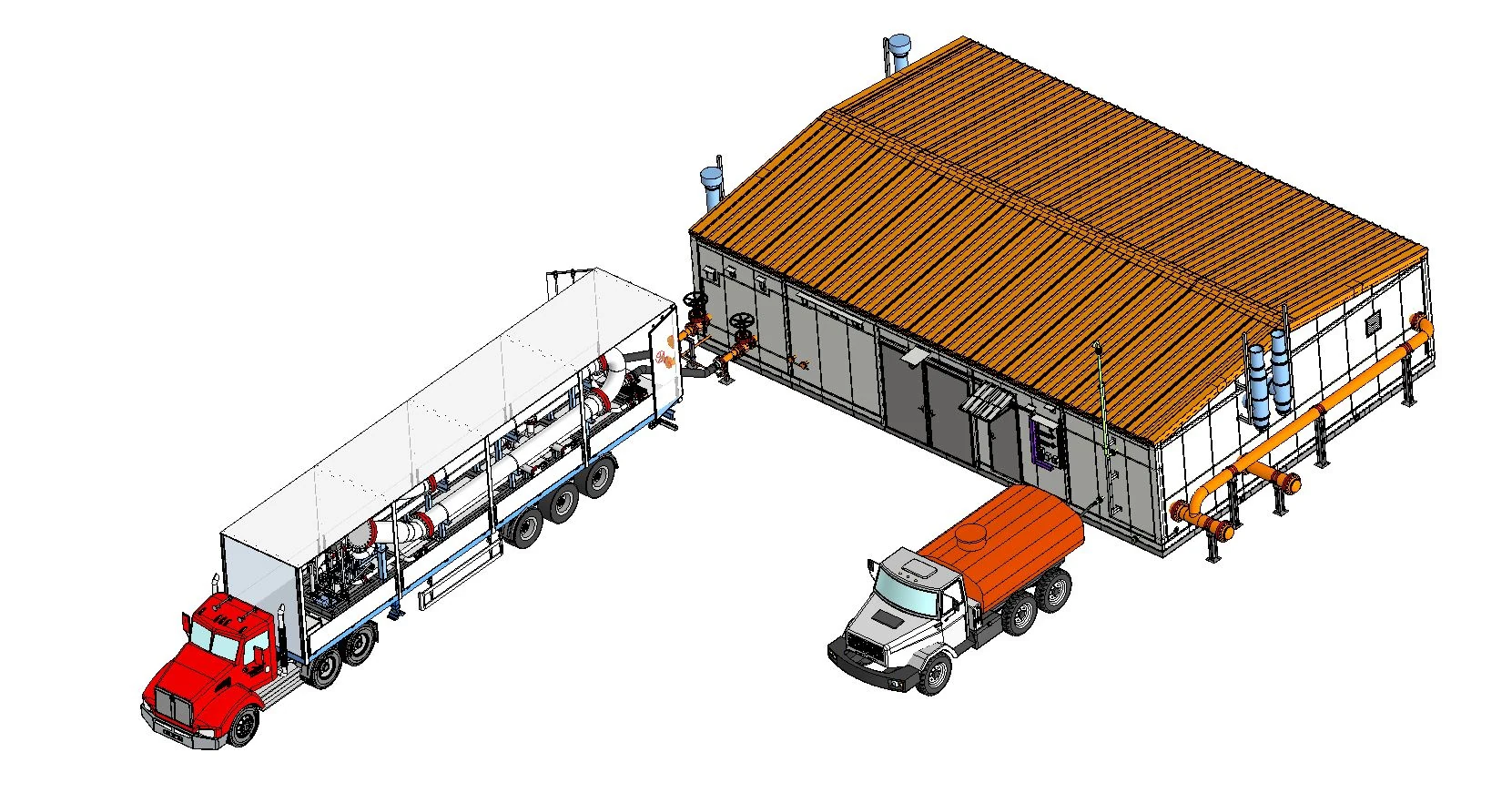

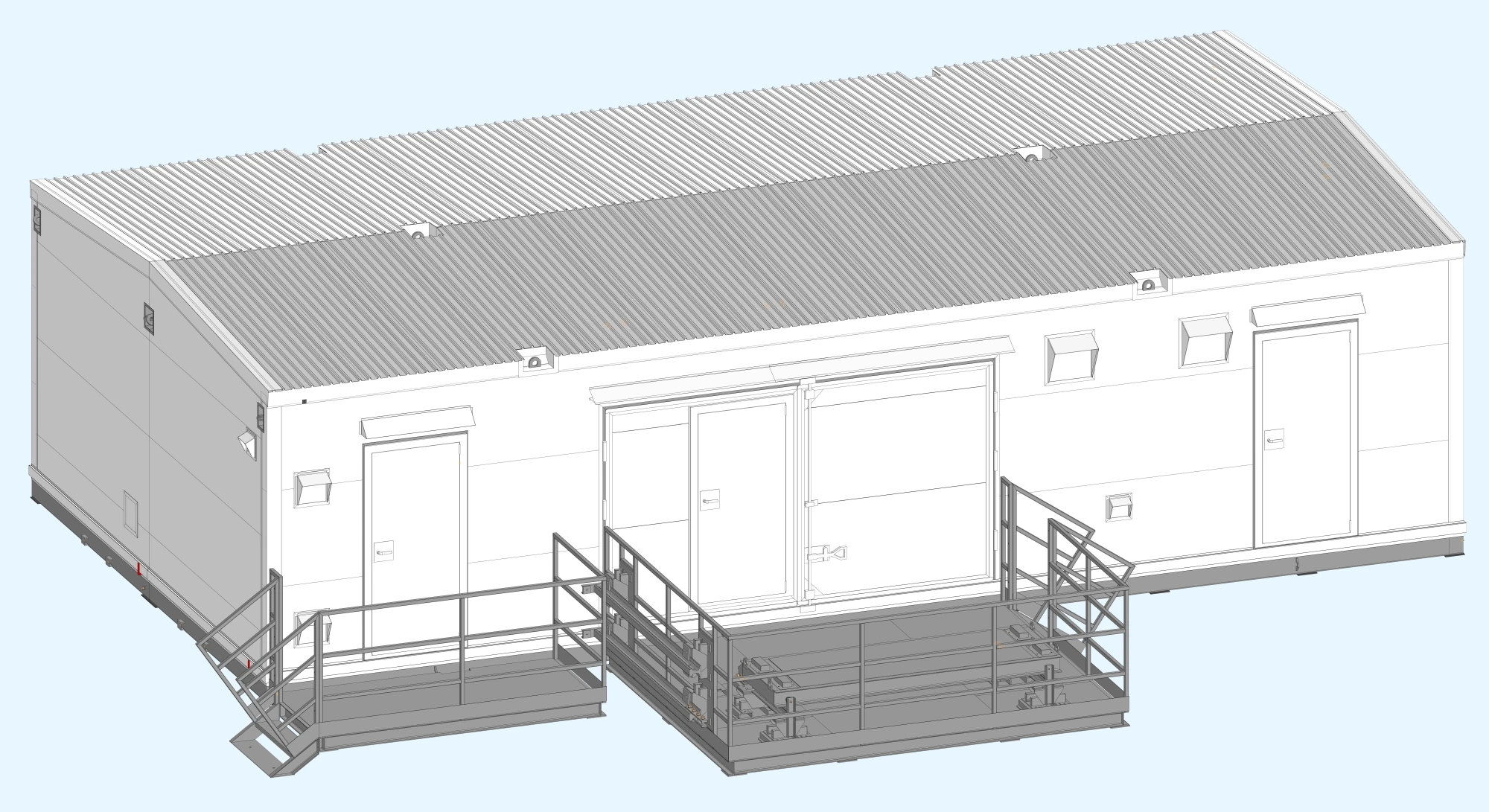

2nd place - Gas compressor station building
The modular gas compressor station building provides suitable environmental conditions for the operation, maintenance, and repair of the gas compressor station equipment housed inside.
Company Name: Industrial Equipment
DIGITAL MOCKUPS

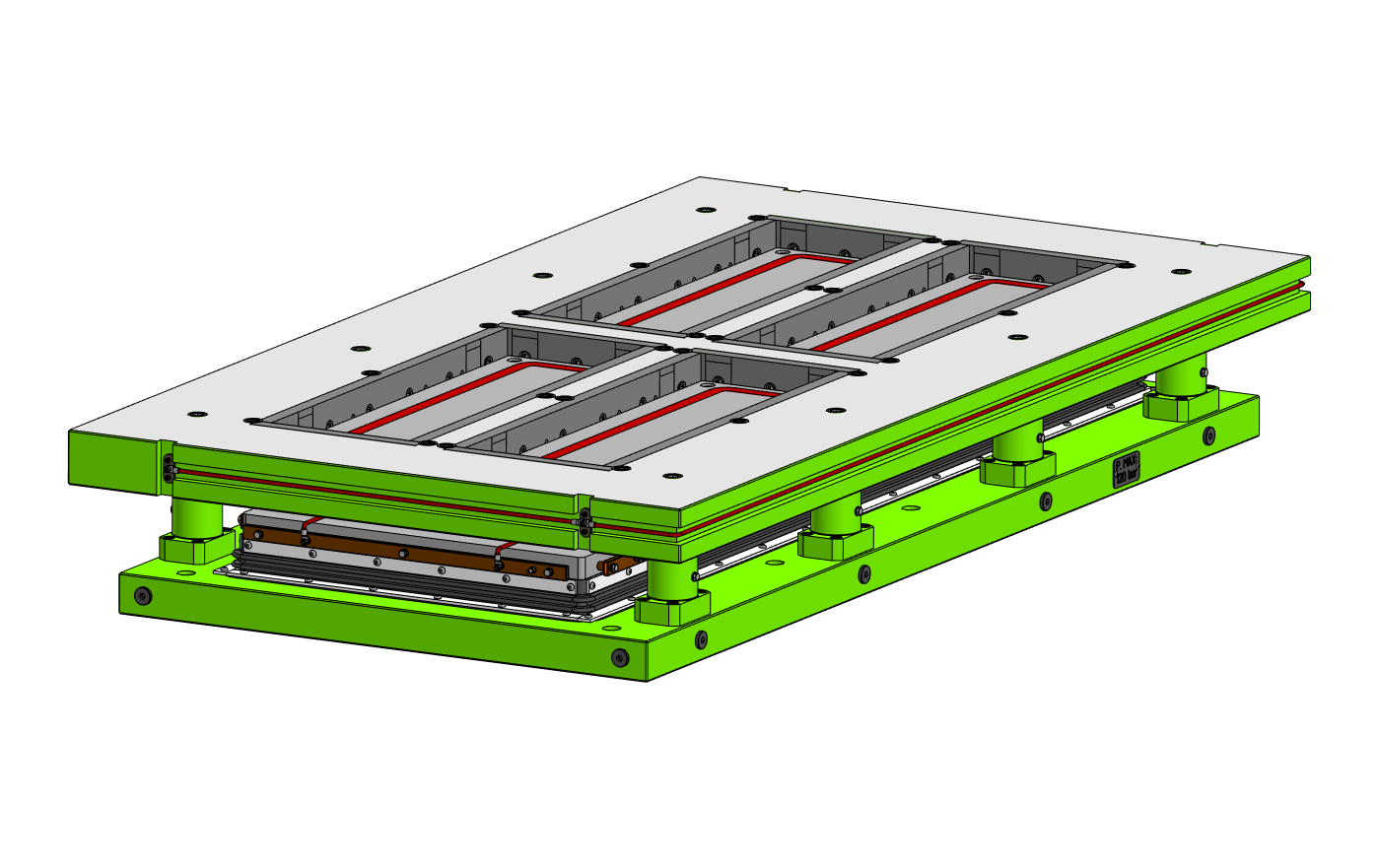

1st place - Forming die
The die is used in porcelain tile manufacturing. It is installed in specialized presses for the ceramic industry.
Company Name: LASSELSBERGER

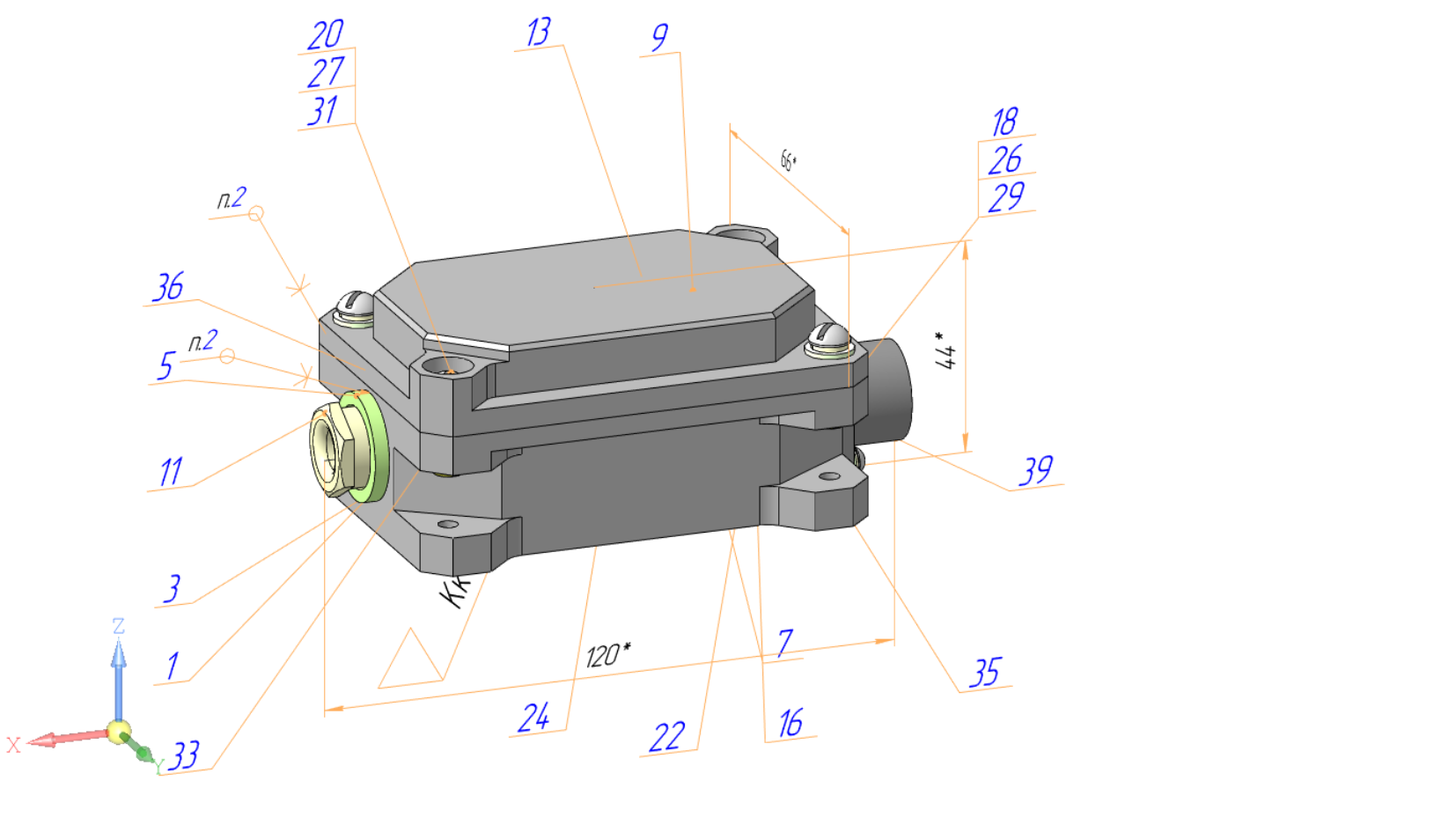

1st place - Connection box
The connection box links the mechatronic module cooling fan wiring to the control unit.
Company Name: Signal Research Institute
YOUNG PROFESSIONALS
1st place - Telescopic grandstand
This is a parametric model of the telescopic grandstand. It is not an exact model of the actual product (only previously designed subassemblies and basic components are included). The model is intended for customer review and material consumption estimates.
Company Name: Research and Manufacturing Equipment
AUDIENCE AWARD (SOCIAL MEDIA VOTING)

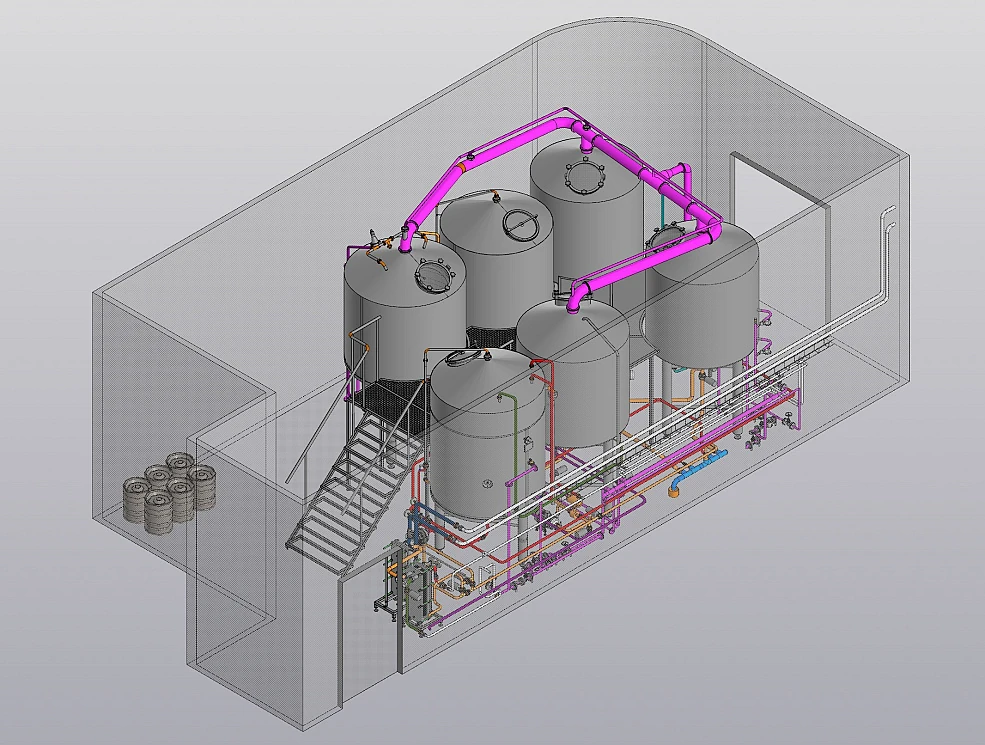

MP.VP-5P-2A brewing line
This is a restaurant brewery upgrade project. The result will be higher beer output. A distinctive feature of the project is the preservation of existing utilities and equipment while adding new components.
Company Name: METALLPROM
AUDIENCE AWARD (PROFESSIONAL CAD COMMUNITY VOTING)
SNV-3 modular potable water pumping station SNV-3 core functionality:
- supply of filtered potable water from tank C-4 to CM mixers
- Remote and local measurement of pipeline pressure
- Visualization of water properties.
Company Name: Automation-Metrology-EXPERT
BEST INDUSTRY PROJECT: SHIPBUILDING
OCEAN.TNPA-MAX
The heavy underwater remotely operated vehicle (ROV) is designed for oceanographic research and search-and-rescue operations at depths of up to 3,000 meters. Operating temperature range: +5 °C to +35 °C.
Company Name: Russian Marine Team
BEST DEBUT

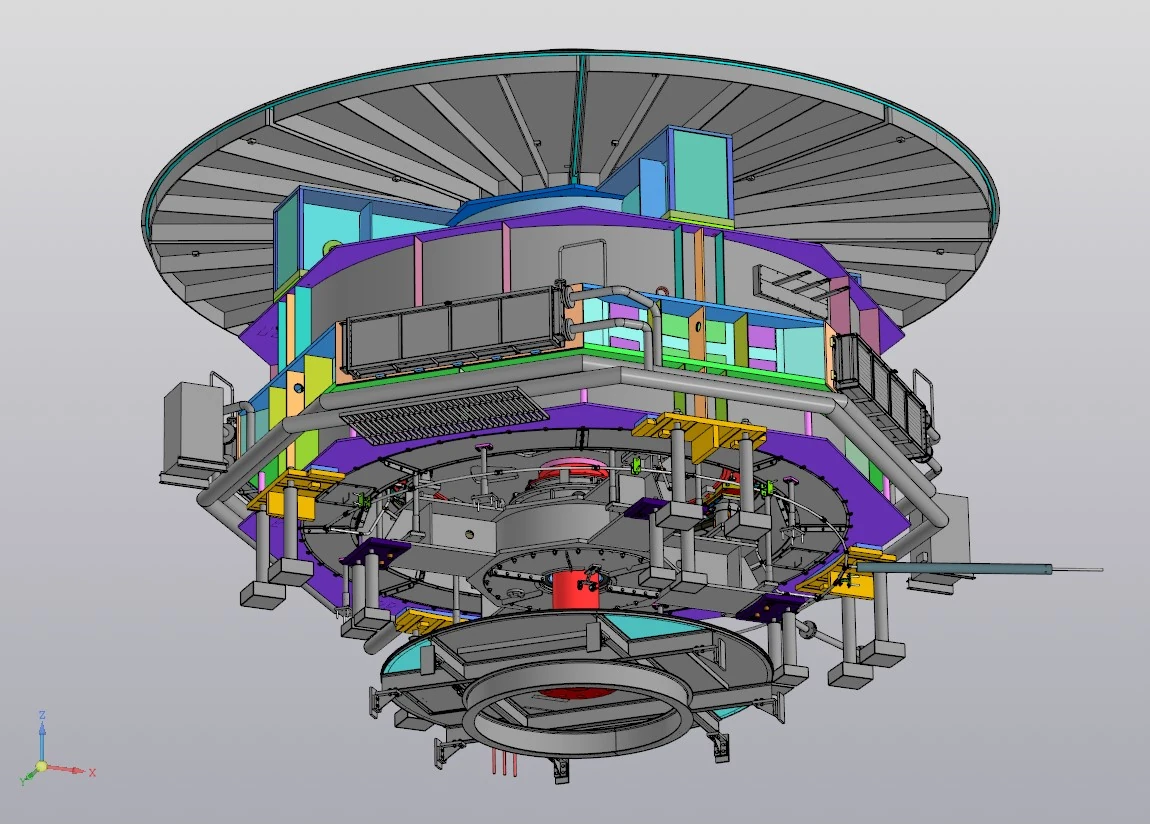

Industrial-grade generator
It is a vertical electric generator driven by a water turbine. Capacity: 10 MW.
Company Name: Volkov Sole Proprietor
BEST DESIGN CULTURE
Oil system regulator
The oil regulator is used in a nuclear power plant. The regulator fine-tunes the flow rate and can also isolate the system.
Company Name: Intelenergomash
Congratulations to all the winners, and thank you to all the contestants!
